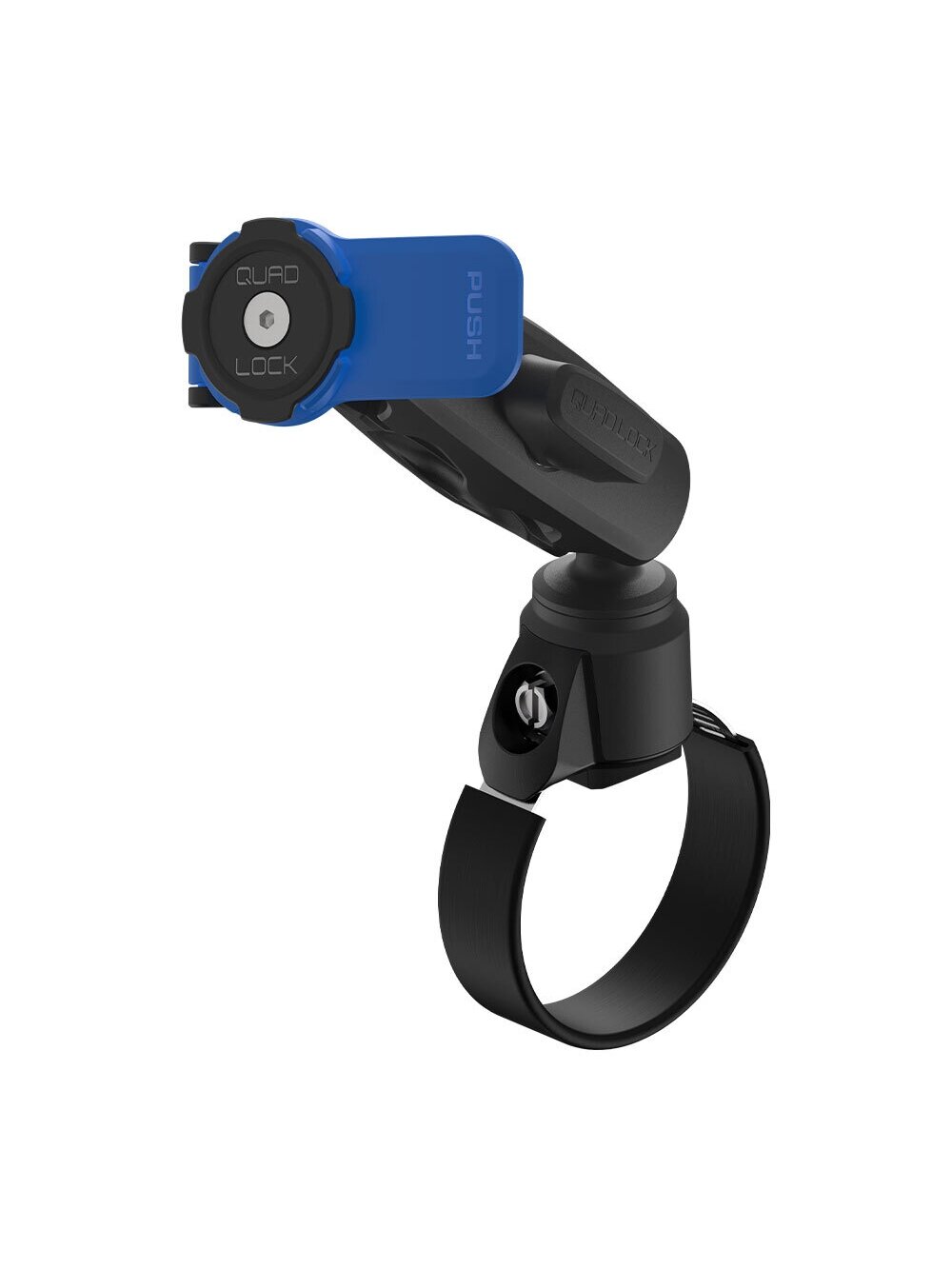

Quad Lock Roll Cage Mount

Features:

- Adjustable and secure mounting solution for roll cage setups

- Rubber sleeve protects mounting surface and provides increased grip

- Guided entry for 8mm socket driver or flat-head screwdriver to install

- Dual pivot arm with 180° vertical and 360° horizontal rotation

- Ball ends offer 180° / 60° movement for flexible positioning

- 75mm (3”) arm length with adjustable handle

- Pivot arm designed with preload tension for easy adjustability

- Inbuilt grooves for tidy cable management

- 316 stainless steel hardware with TPU overmould

- Lever Head offers patented dual-stage locking and portrait or landscape mounting orientation



Bar compatibility:

Suits all bar diameters from 32mm to 60mm (1-1/4” to 2-3/8”)

Fits RHS bar 35-50mm



Two pivot points for adjustability:

- Rotates through 180° vertically and 360° horizontally

- Balls at either end offer 180° / 60° movement for greater angle



Compatible With:

- Quad Lock 360 Range

- All Quad Lock Cases & Universal Adaptors

Not Compatible With:

- Non 360 Products



Included in box:

1x Quad Lock 360 Lever Head (with retention ring and M5 x 20mm countersunk hex head screw - Silver)

1x Dual Pivot Arm (Medium)

1x Dual Pivot Arm Handle

1x M5 x 35mm countersunk hex head screw - Silver

1x 3mm Hex (Allen) key

1x Hose Clamp Base (Assembled): Large hose clamp (40-60mm), Aluminium base, Spacer, Cap, Sleeve (Attached)

1x Sleeve (Spare)

1x Small hose clamp (21-44mm)



Materials:

Lever head:

- LEVER & INDEX BASE V3: Glass Filled Nylon

- FASTENER: 316 Stainless Steel (Silver)

Dual pivot arm (Medium):

- ARM: Glass Filled Nylon

- BALLS: TPU Overmould

- FASTENERS & HARDWARE: 316 Stainless Steel (Silver)

Hose clamp base:

- BASE: Aluminium 6061 T6

- CAP: Glass Filled Nylon

- SLEEVE & SPACER: Rubber (NBR/SBR)

- HARDWARE: 316 Stainless Steel (Silver

Dual pivot arm (Medium)

- Quad Lock 360 Dual Pivot Arm Handle / Screw Set (QLP-360-DPAH)

- Quad Lock 360 Dual Pivot Arm Balls - Set of 2 (QLP-360-DPAB)

- Quad Lock 360 Dual Pivot Arm - Medium (QLP-360-DPM)

Hose clamp base

- Quad Lock 360 Roll Cage Hose Clamp (QLP-360-HCB)

- No specific components available due to low product volume

- Future consideration - spare parts of the SPACER and SLEEVE



Measurements:

215 x 82 x 36mm (Varies by lever head assembly angle, DPM angle and hose clamp size used)
