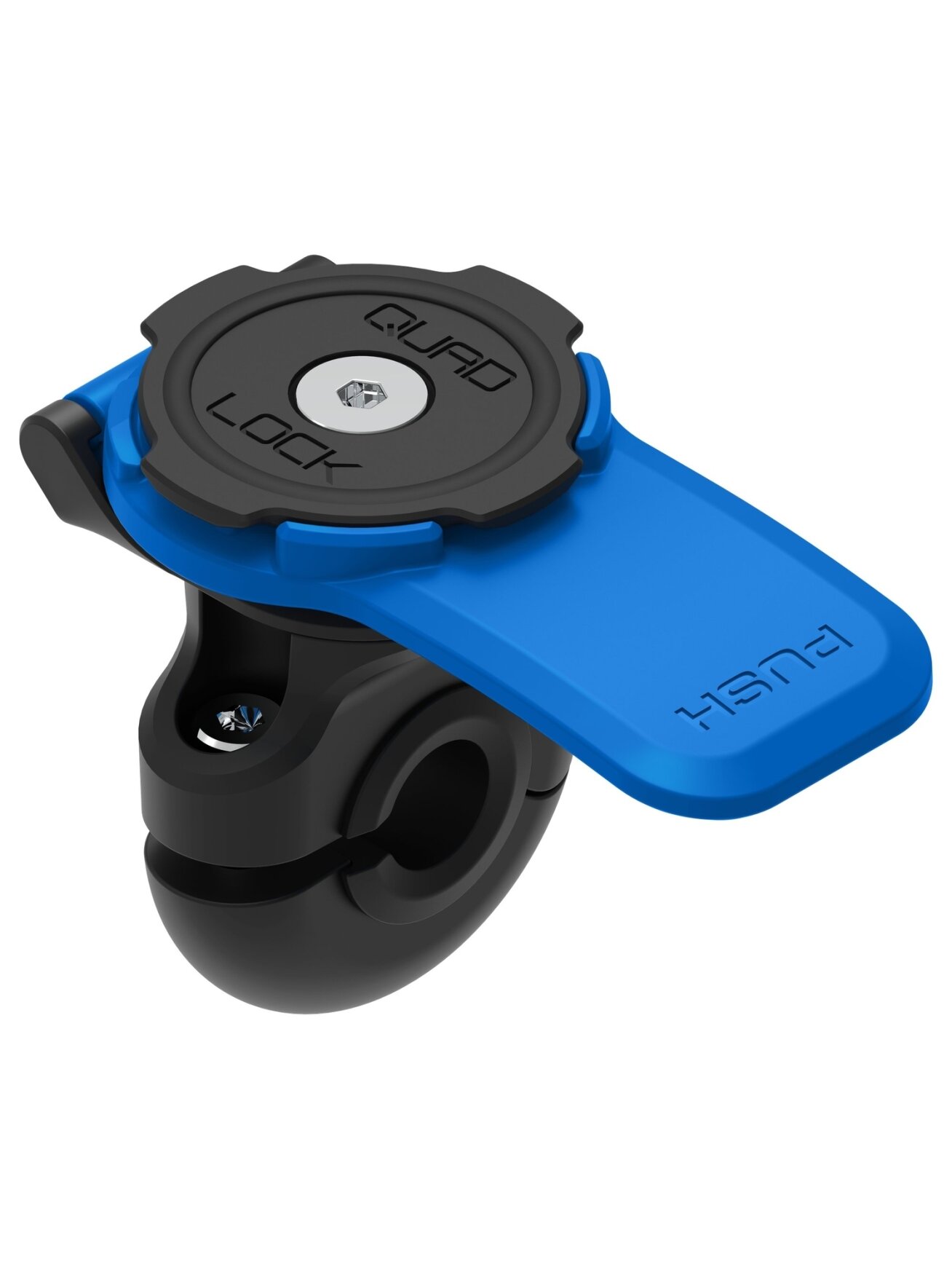

Quad Lock Motorcycle / Scooter Mirror Mount (V2)

The Quad Lock® Mirror Mount allows you to securely mount your phone to standard motorcycle and scooter mirror stems and small bars.

Features:

Secure - Patented Dual Stage Locking Mount

Convenient - Use Navigation Apps on the go

Single fastener clamp attachment with hinge pivot for easy installation

Mount phone in portrait or landscape orientation

Adjust mount head in 360° for optimal viewing angle

Suits bar sizes 10, 12, 14 & 16mm



Compatible with:

All Quad Lock Cases & Universal Adaptors

All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)

All Quad Lock 360 Compatible Products

All Quad Lock Coloured Levers

Handlebar compatibility:

Spacer Sizes (ID)

- 10.0mm (25/64”)

- 12.0mm (15/32”)

- 14.0mm (9/16”)

Clamp size (ID) without Spacer

- 16.0mm (5/8”)



Included in box:

1 x Mirror Mount V2

3 x Bar Spacers: 14mm (9/16”), 12mm (15/32”), 10mm (25/64”)

1 x 3mm Allen (Hex) Key



Materials:

Glass Filled Nylon

316 Stainless Steel Hardware

TPU Bar Spacers



Recommended torque rating:

Index Head Screw - 2.0 Nm Max.

Clamp Screws - 2.0 Nm Max.



Measurements:

Length: 67.5mm (Overall)

Width: 36.0mm (Head), 14.5mm (Clamp), 16.4mm (Spacers)

Height: 51mm (Overall), 32mm Centre of handlebar to top of Index Head
