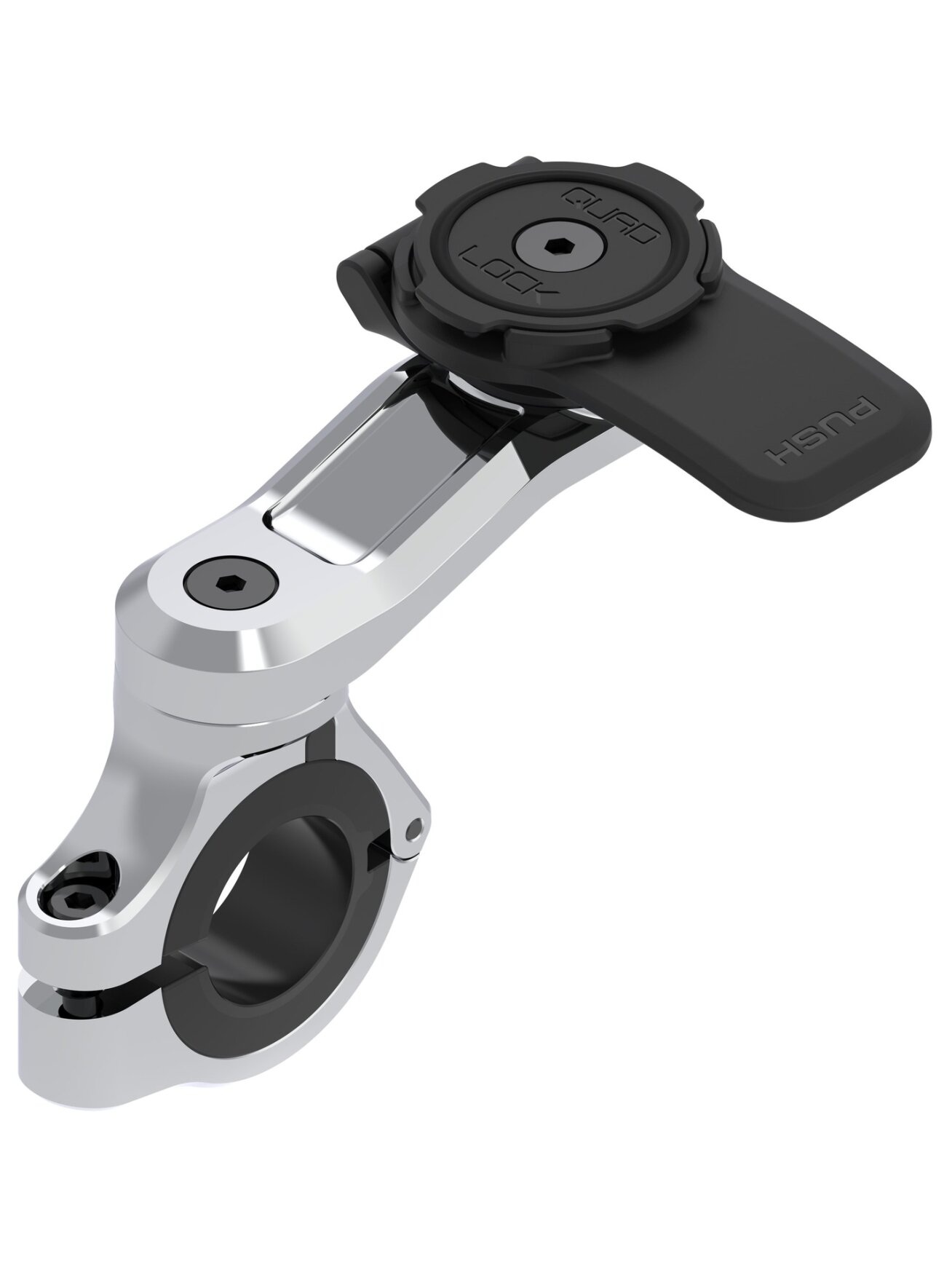

Quad Lock Motorcycle Handlebar Mount Pro Chrome

The Quad Lock® Handlebar Mounts are the ultimate smartphone mounts for motorcycles.



Features:

Chrome plated clamp and extension arm

Slim clamp width with flush mounted spacers

Multiple mounting configurations

Fits a wide range of handlebar sizes (refer below)

Discreet cable route for USB charge cables. Remove plug in upper clamp to access

Assembled with Black Lever

Black Hardware

Handlebar compatibility Spacer Sizes (ID): 22.2mm (⅞”), 25.4mm (1”), 28.6mm (1-⅛”), 31.8mm (1-¼”)



Adjustability:

Angle adjustability of clamp around handlebar

360° rotational adjustment of Extension Arm and Index Head



Compatible With:

- Quad Lock 360 Range

- All Quad Lock Cases & Universal Adaptors

- All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)

Not Compatible With:

- Non 360 Products



Included in box:

1 x Quad Lock Index Head Assembly

1 x Quad Lock HBR-PRO Clamp and Extension Arm Assembly

4x Bar Spacers - 22.2mm (⅞”), 25.4mm (1”), 28.6mm (1-⅛”), 31.8mm (1-¼”)

1 x M5 x 35 Black Screw (to replace silver screw on Moto WCH/USB)

1 x 3mm Hex Key

Materials:

Clamp and Extension Arm Assembly - 6061 Aluminium Chrome Plated

Spacers - Glass Filled Nylon with Overmolded Flexible Liner

Index Head - Glass Filled Nylon

Hardware - Stainless Steel

Index Head V3 with Black Lever



Screw types:

All screws: 316 Stainless Steel Black with Threadlocker

Index Head – M5 x 20 Hex CSK

Index Head (spare) - M5 x 35 Hex CSK

Extension Arm – 1 x M5 x 20 Hex CSK

Clamp – M4 x 16 Hex Socket Screw



Recommended torque rating:

Index Head Screw – 2.5Nm Max

Extension Arm to Clamp Assembly Screw - 3.0Nm Max

Clamp Assembly Screw - 2.0Nm Max



Measurements:

Length: 97.6mm overall

Width: 67.6mm overall, 25mm Clamp and Extension Arm, 15mm Clamp

Height: 81.0mm overall, 59.5mm Centre of handlebar to top of Index Head
