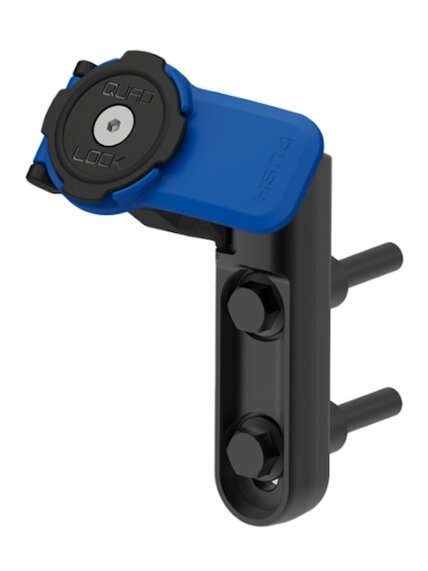

Quad Lock Motorcycle Clutch Mount

The Quad Lock® Brake/Clutch Mount is the perfect solution for motorcycles which require mounting on the brake/clutch perch.

Features:

- Compact design with twin bolt mounting to the brake/clutch handlebar clamp

- Mount base hole pitch range from 32 - 38mm

- Inboard single screw adjustment with angle and pivot adjustment towards the rider field of view

- Index lever head is offset inboard away from the handlebar controls

- Non-handed and can be mounted on the left hand or right hand side of the brake/clutch handlebar clamp on a motorbike

- High tensile fasteners including serrated flange bolts for the brake/clutch handlebar clamp for added security

- Anodised black die-cast base

- Microencapsulated thread locking fasteners



Compatible with:

All Quad Lock Cases

Quad Lock Vibration Dampener (QLA-VDM)

Quad Lock Weatherproof Wireless Charging Heads (QLA-MOT-WCH-3)



Included in box:

1 x Brake/Clutch Mount

2 x M6 x 45 serrated flange bolts with thread locker

2 x UNC ¼”-20 x 1.75 serrated flange bolts with thread locker

2 x Spacers

1 x Combination 3mm/4mm Hex Key



Measurements: 35mm L x 50mm W x 98mm H



Materials:

Base - Anodised die cast aluminium

Index head, knuckle and pivot spacer - GF33% Nylon

Pivot pins, threaded Inserts - SS

Fasteners - High tensile steel with ND593S threadlocker
