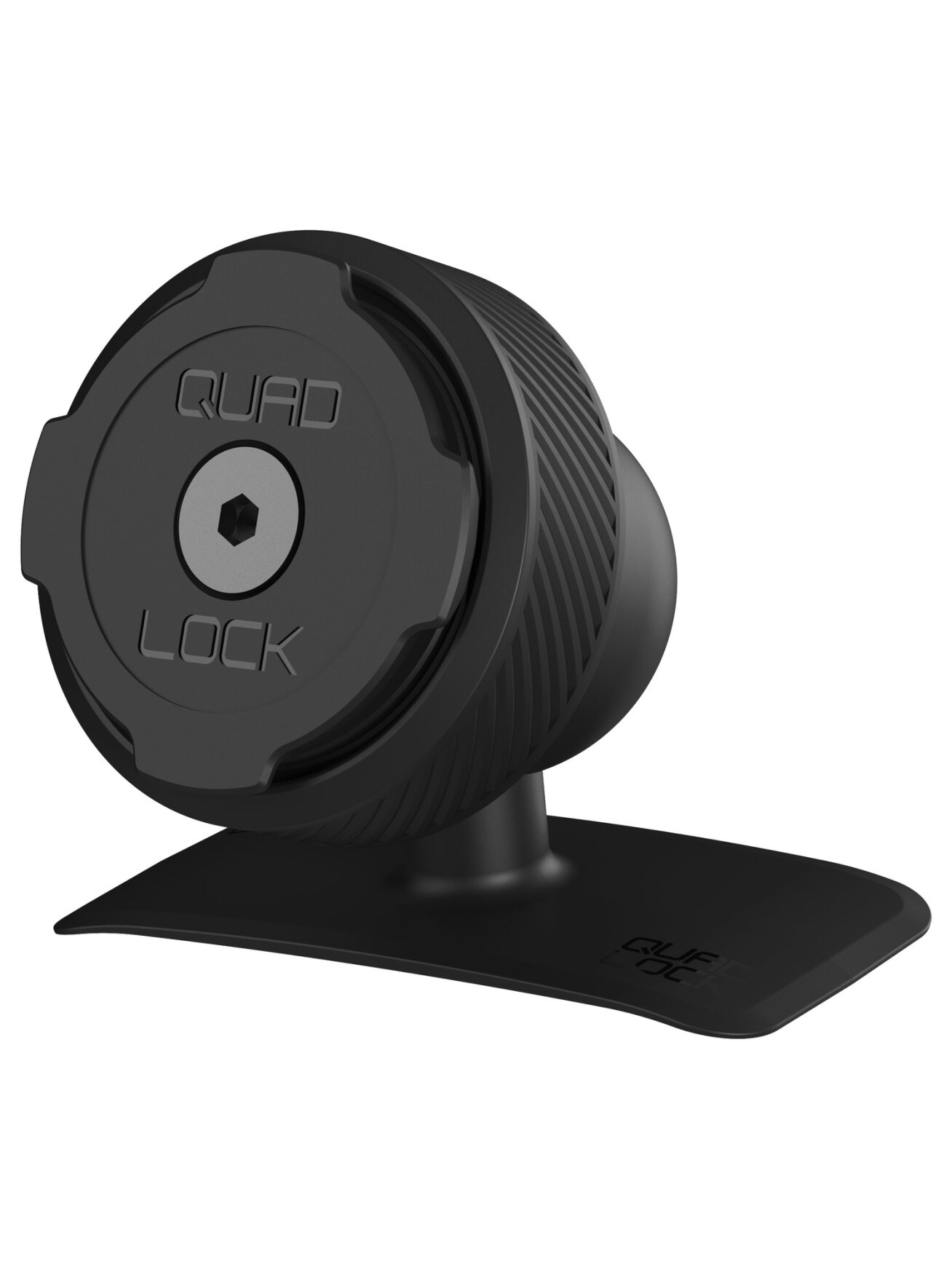

Quad Lock Dash / Console Car Mount

Features:

- Low Profile & Adjustable Mount for your Car Dash or Console

- Flexible 3M VHB Adhesive base which can bond to flat or slightly curved surfaces

- Portrait or Landscape Mounting for Optimal Viewing

- Single pivot ball allows 180° head articulation (Z axis) and 360° rotation around the base

- Rubber knurled locking nut provides better grip to tighten / loosen

- Temperature Resistance: 149°C (300°F) long term / 93°C (200°F) short term

- Upgrade to Quad Lock Wireless Charging or MAG Heads



Compatible with:

All Quad Lock cases and Universal Adaptors

Quad Lock MAG & Wireless Charging Heads (QLH-MAG, QLH-WCH, QLH-MAG-WCH)



3M Adhesive suitability:

Recommended Substrates:

Smooth, non-porous, non-textured surfaces such as;

- Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. Car dash, console)

- Un-coated glass (eg. Windshield)

- Metals

- Fibreglass

Non-Recommended Substrates:

- Rubber, TPU, TPE

- Leather

- Silicone

- Soft touch coating or paint

- Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE

Application Temperature:

- Ideal application temperature: 21°C (70°F) to 38°C (100°F)

- Not recommended application temperature: Below 10°C (50°F)

It is not recommended for use on Motorcycles, Scooters, ATV’s or other high frequency engine vibration applications.



Materials:

Base - Gf Nylon (Pa66+14gf)

Ball Overmould - Tpu 80sha

Locking Nut - Gf Nylon (Pa66+14gf) + Tpu 80sha

Top Cap - Gf Nylon (Pa66+14gf)

Reverse Single Pivot Dome - 30% Glass Filled Polycarbonate

(Pc+30gf)

Reverse Single Pivot Base - Pc+Abs

Adhesive - 3m 5611 - 1.1mm Thick



Included in box:

1 x Quad Lock Dash/Console Car Mount with Top Cap

1 x Spare 3M VHB 5611, pre-cut to size Adhesive pad

1 x Isopropyl Alcohol prep wipe



Ensure the mount does not interfere with essential vehicle operation (steering, airbags, braking, etc)

Recommend NOT to mount in a position that may obstruct driver’s view

Measurements: 59.5mm L x 39mm W x 45mm H
