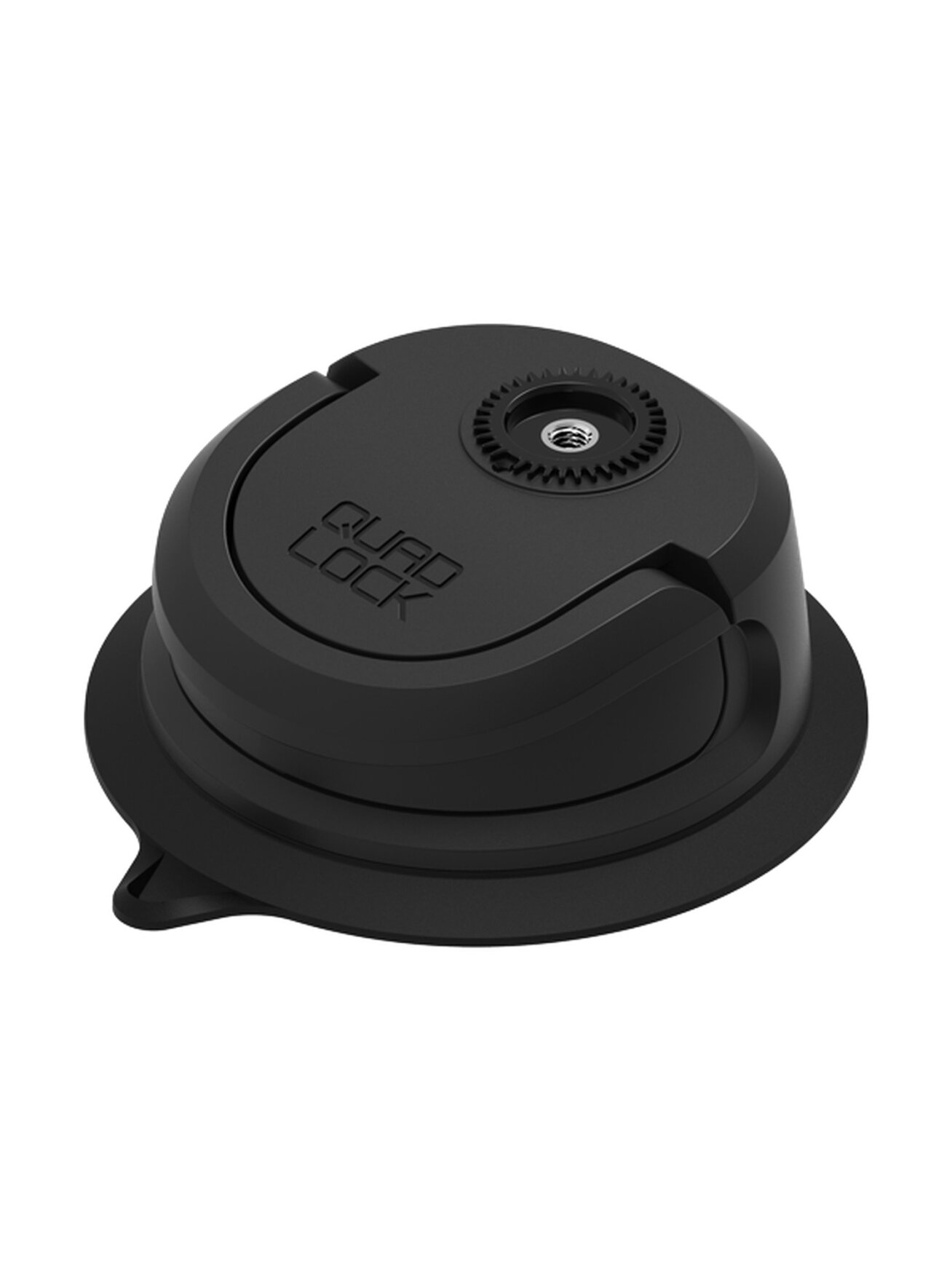

Quad Lock 360 Base - Suction

Features:

Intended as a suction base for users to mount their smartphone, tablet, or action camera to surfaces typically found in drive, aero, and marine environments.

360™ compatible interface, to be configured with choice of 360™ Arm and Head to suit user’s applications.

Suction cup is high strength for mounting on smooth, non-porous surfaces (i.e., adequate for holding iPad Mini, incl. Case, Head and Arm; approx. 700g).

Suction cup is durable and repositionable (i.e., no gel / adhesive).

Ease of repositioning is further enhanced by the adjustability of the 360™ Arm and Head (e.g., can be positioned close to corners of differently angled windscreens).

Lever provides users with a tactile, easy-to-use method for locking and unlocking the suction cup and actuates the suction cup, creating a vacuum against the application surface.

The shape of the lever allows full rotation for locking / unlocking, while maintaining adequate clearances to 360™ Arm options.

Compact form factor - the Suction Base’s lever and housing is smaller than the footprint of its Suction Cup.



Not compatible with:

Adhesive Dash Pad



Compatible with:

ALL 360™ ARMS

ALL 360™ HEADS, WHEN USED WITH AN ARM*

Note: It is not recommended to attach a 360™ Head directly to the Suction Base as it would impede the function of the Lever. Instead, use a 360™ Arm to ensure sufficient clearance.



Surface guidelines: The Suction Base is intended for use on smooth, non-textured, non-porous surfaces such as:

- Glass or plastic such as PC or Acrylic (e.g., windshields)

- Painted or powder coated metal or steel that are not ‘soft touch’, rough or textured (e.g.,

vehicle bodies)

- Fibreglass with gelcoat or marine paint (e.g., boat trim)

The Suction Base will work on gently curved surfaces (>1m curvature radius). Clean the surface with a damp cloth, and allow it to dry before attaching.



Operating temperature: The ideal operating temperature for the Suction Base is between -10 to +50°C ambient / outside temperature.

When not in use, remove and stow the Suction Base with its lever unlocked.



Weight holding capacity:

The Suction Base is capable of supporting loads of up to 1.2kg through typical use cases (only use with Quad Lock products and supported devices)



Included in the box: 1 x 360™ Suction Base

Materials:

Housing W/ Insert - Glass-filled Nylon; M5 Stainless Steel Threaded Insert

Lever - Glass-filled Nylon

Suction Cup - NBR (Nitrile Butadiene Rubber)

Suction Cup Insert - Stainless Steel

Hinge Pin - Nickel-plated Steel

Compression Spring - Stainless Steel

Measurements: 101 mm L x 89 mm W x 34 mm H
