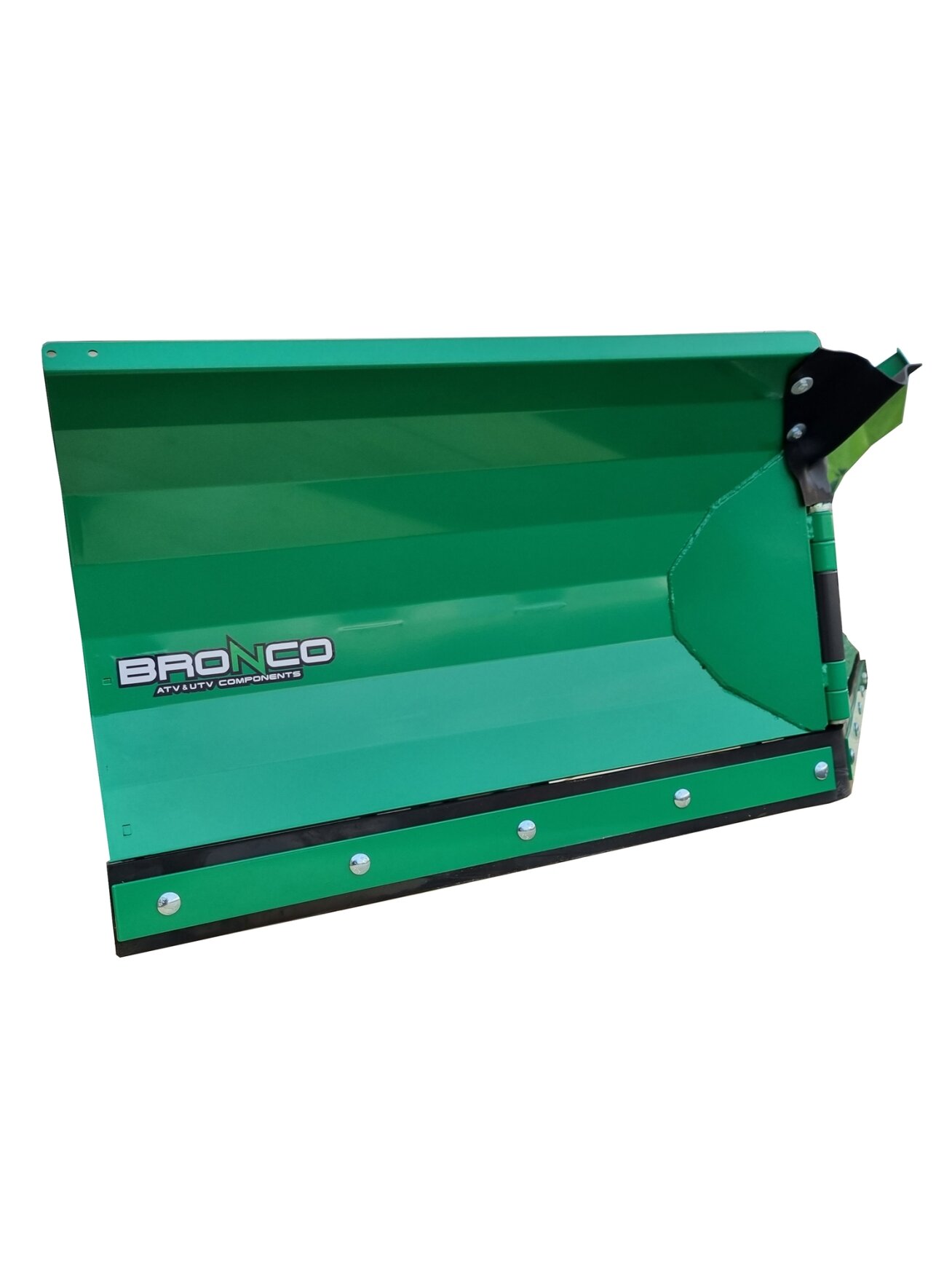

    Nauja prekė   Bronco V-Plow 160-E Electric 4
    Nauja prekė   Bronco V-Plow 160-E Electric 5
    Nauja prekė   Bronco V-Plow 160-E Electric 6

    Bronco V-Plow 160-E Electric

    Kodas: 75-804800
    Pasiteirauti apie prekę
    3073.79 €
    Netinka kaina? Siūlyk savo!
    Pristatymo galimybės

    Galutinė pristatymo kaina ir galimybės gali skirtis dėl prekių, įdėtų į krepšelį.

    Kurjeris, per 4 - 20 d. d. 100 €
    Pristatyti nereikia. Prekes pasiimsiu pats., per 2 - 5 d. d., Pramonės g. 18, Pakruojis 0 €

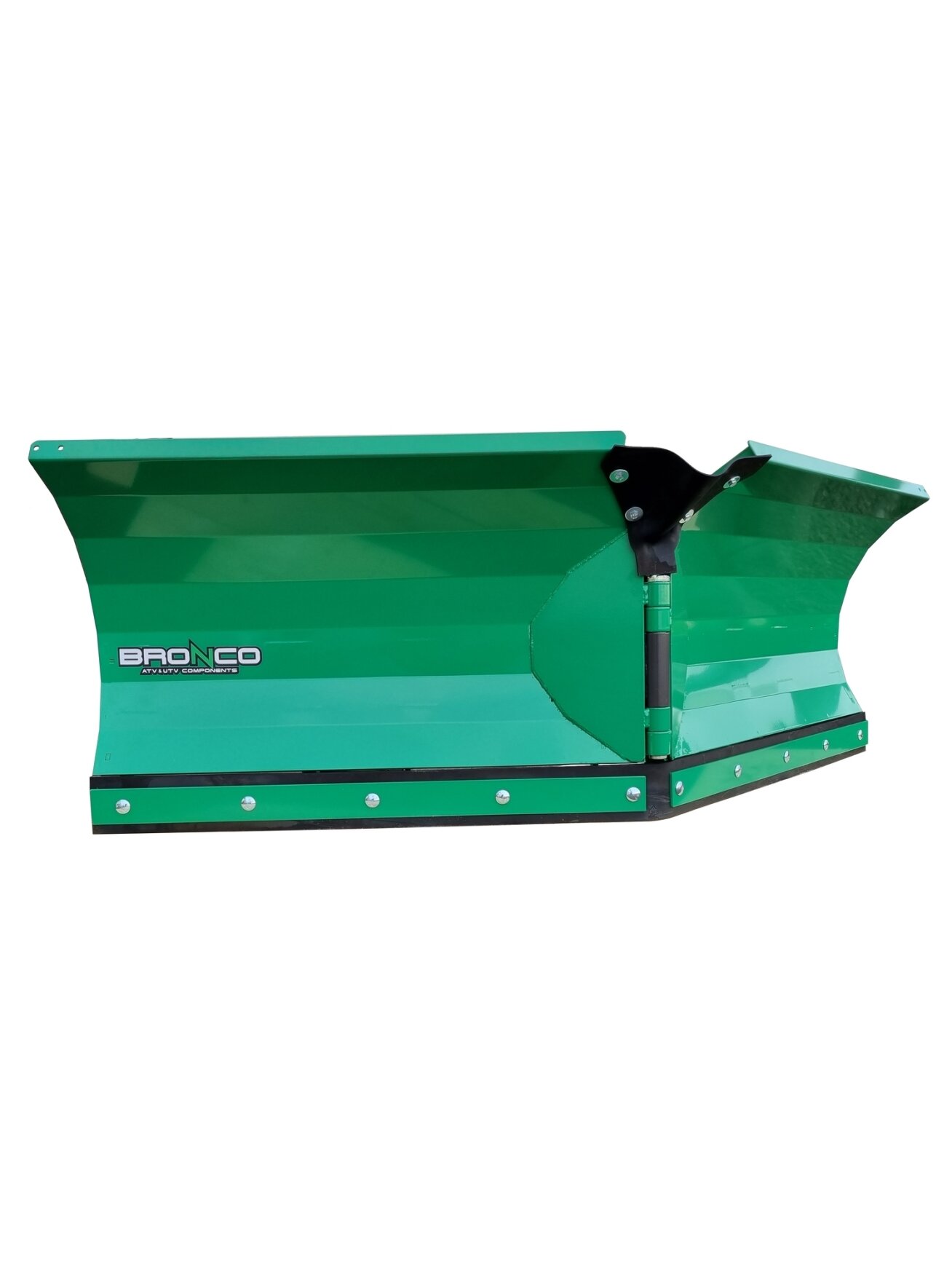

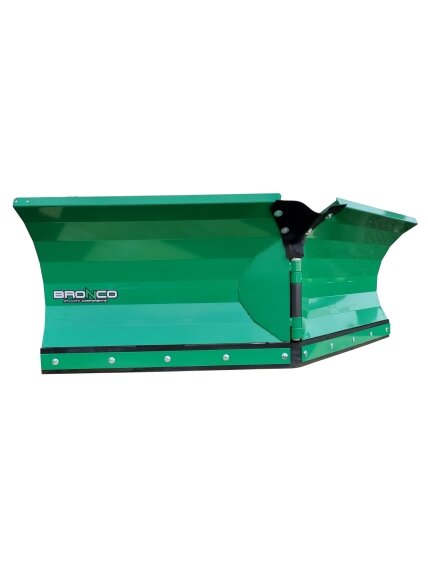

    Bronco V-Plow 160-E

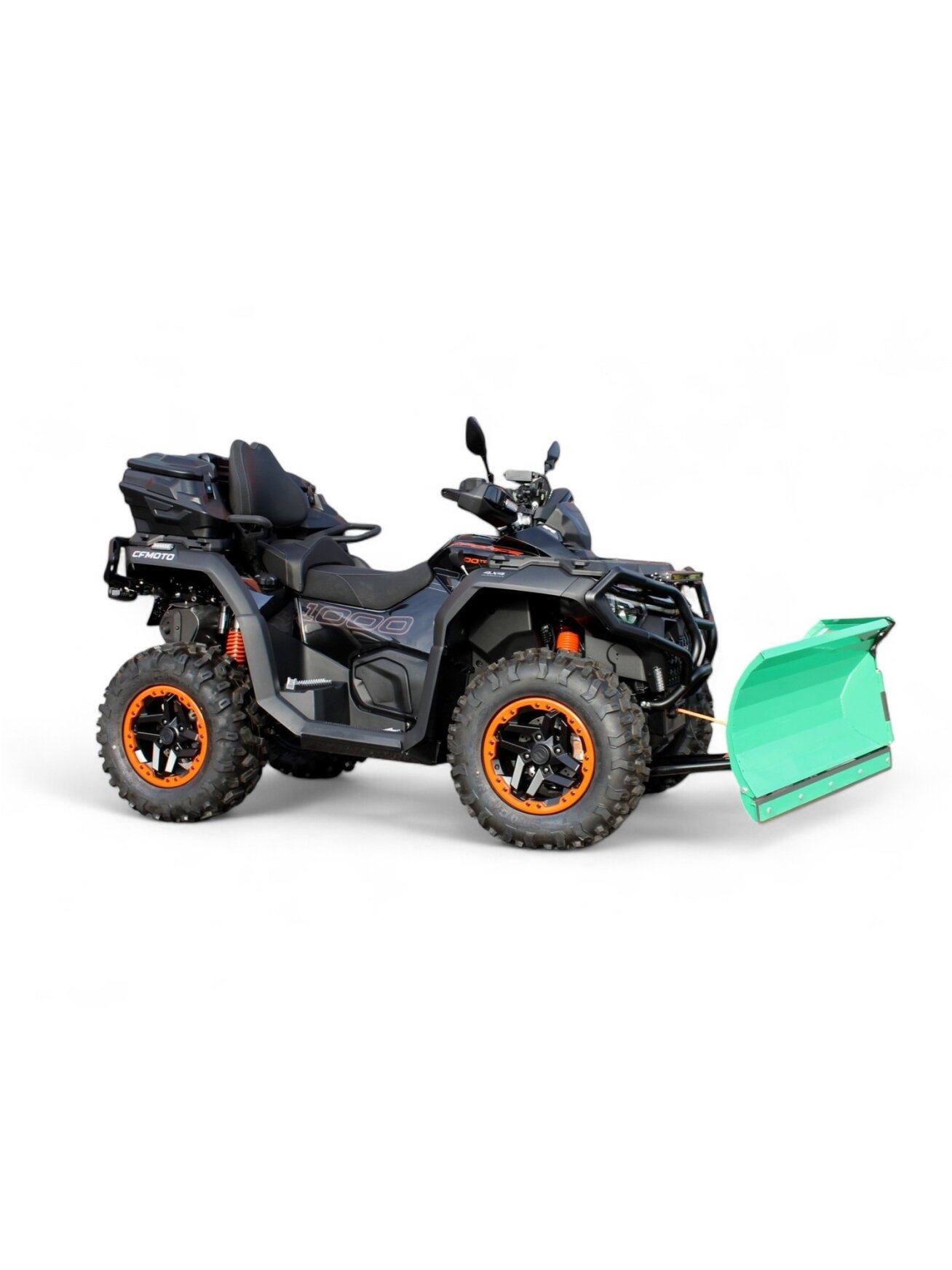

    A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

    Pallet shipping cost will be added. Some assembly necessary
    Gamintojas
    Bronco

  • Bronco V-Plow 160-E

    A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

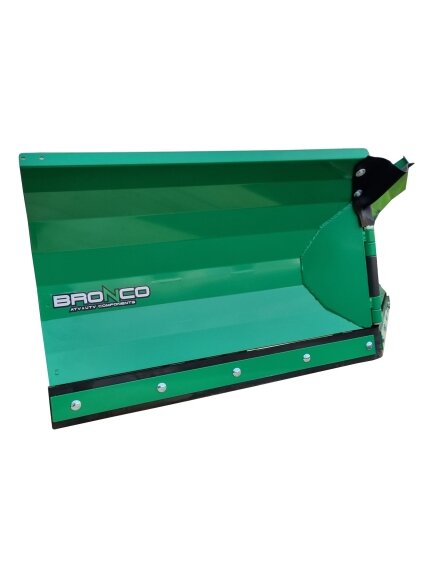

    Bump absorbing wear bars with torsion element. Rubber equipped wear bar as standard for a smooth and silent plowing on gravel, cobblestone, and other sensitive surfaces.

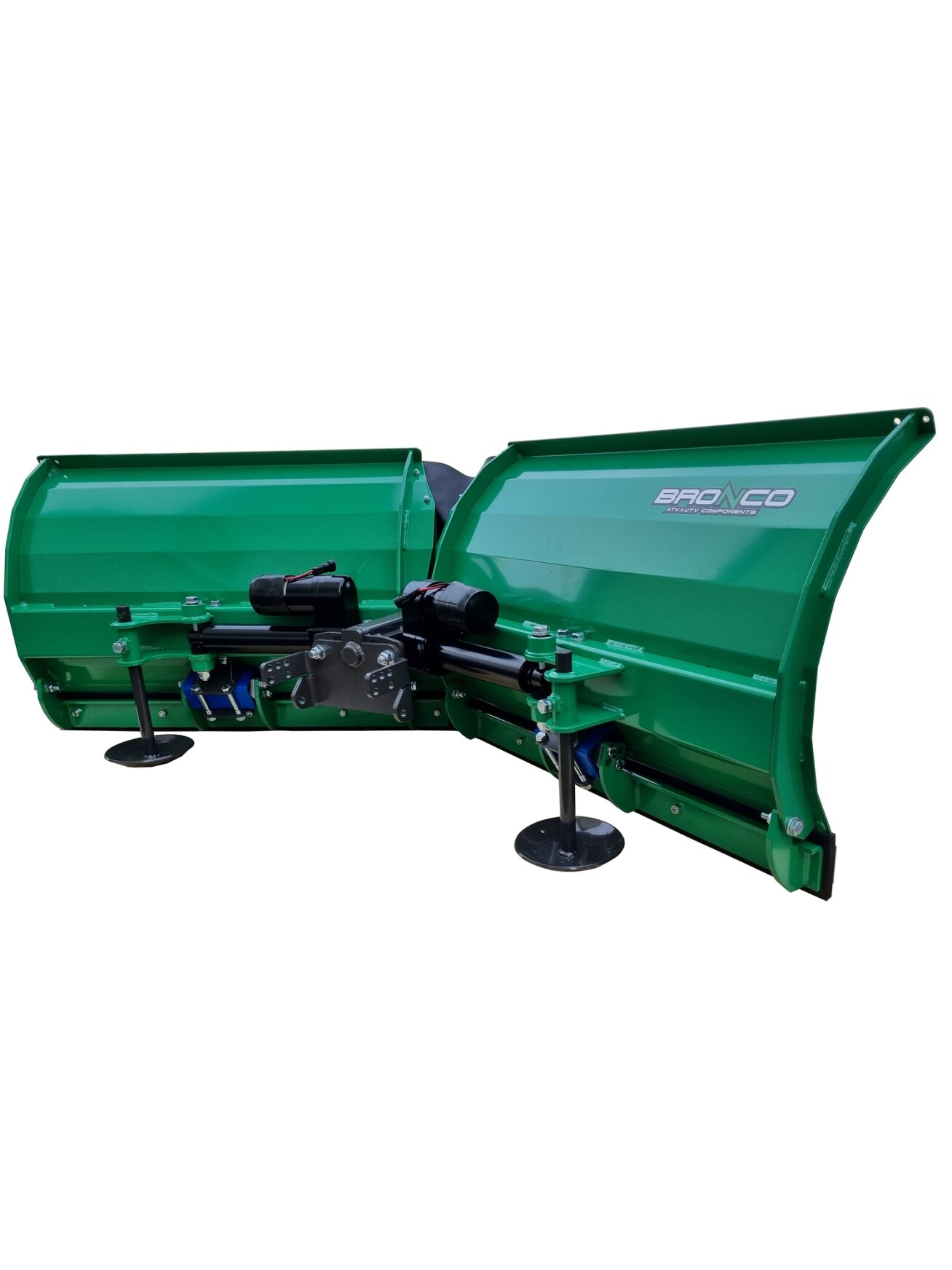

    Adjustable skid shoes.

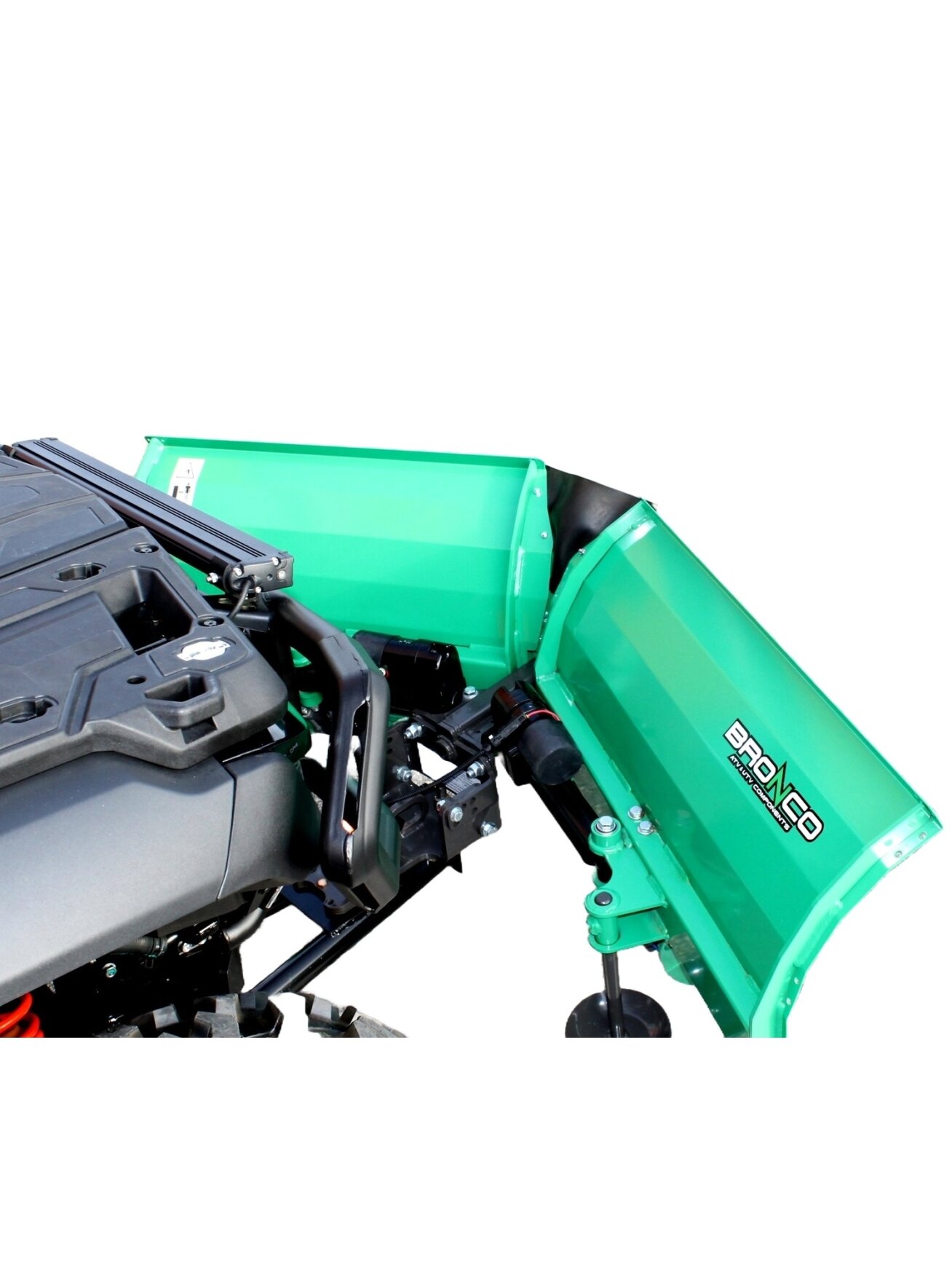

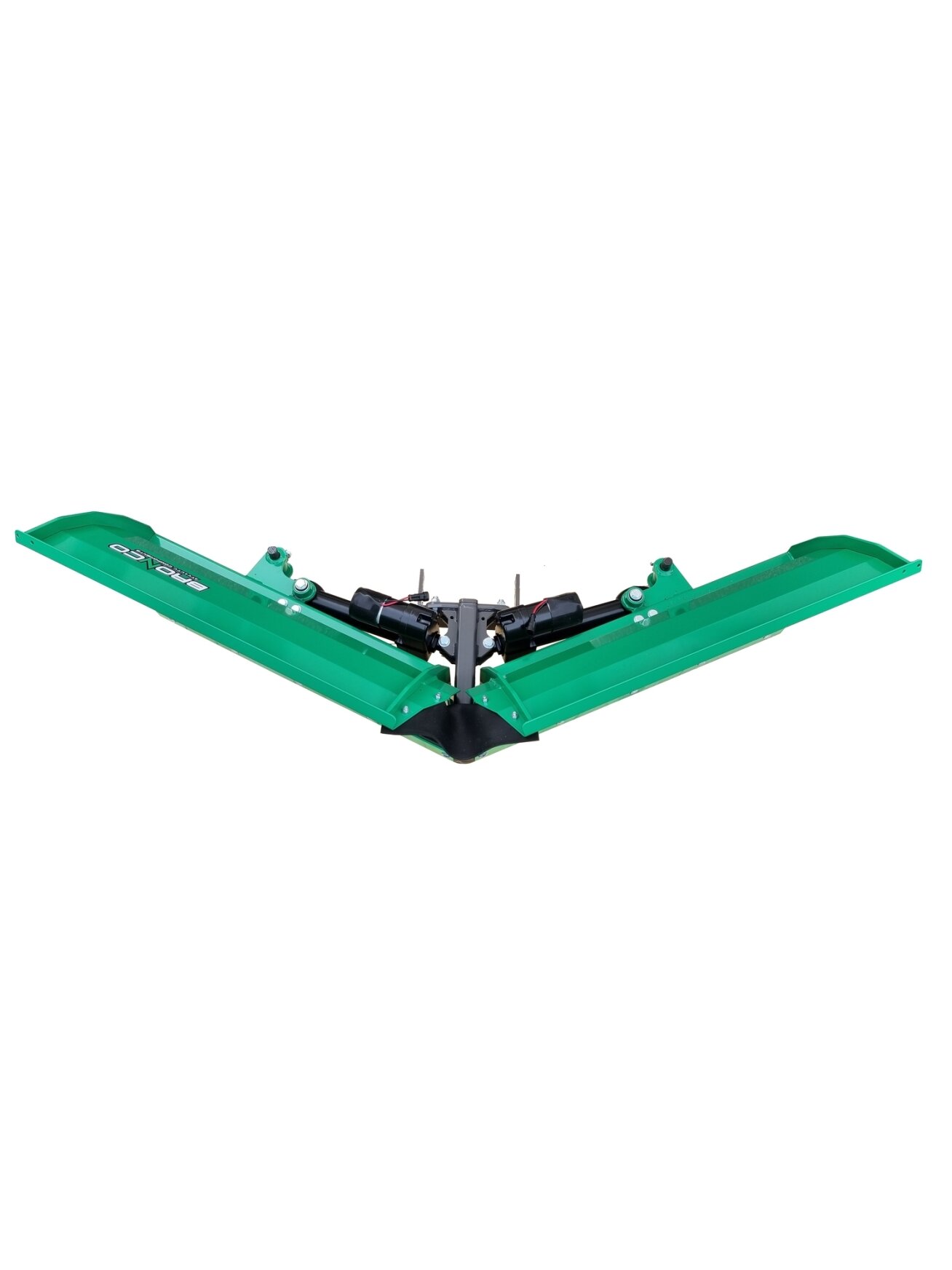

    The blades are angled with the help of two powerful 12V, IP65 rated actuators from the mining industry. Each actuator moves approx. 225kg when in motion and holds its position under a 1,1 ton loading.

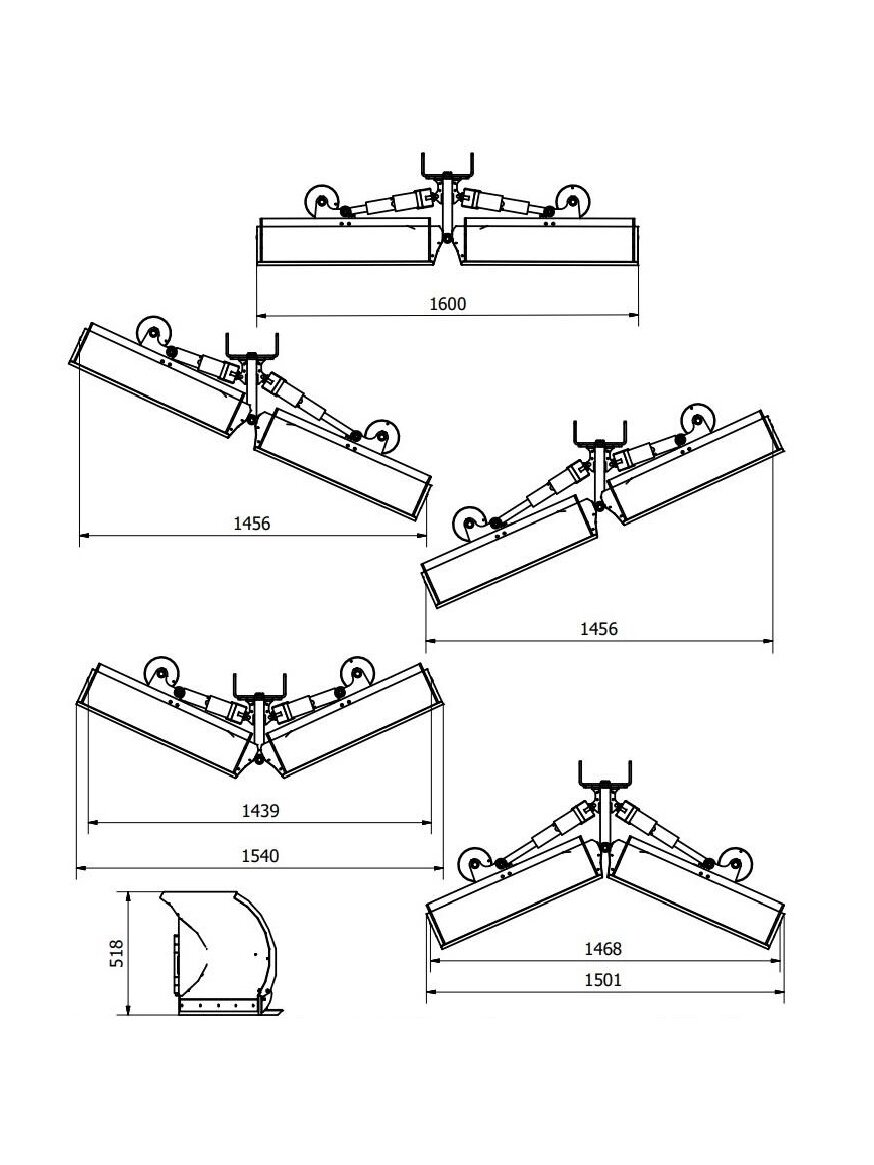

    Dimensions V-plow:
    Straight position: 160cm
    Fully angled: 146cm
    Width V-shape: 154cm
    Bucket position: 150cm
    Height: 52cm
    Weight without adaptor: 70kg

    Specifications actuator:
    Max dynamic load: 2250 N
    Max static load: 11350 N
    Speed, unloaded: 30 mm/s
    Speed, max load: 18 mm/s
    Classification: IP 65
    12 VDC, 28 A
    Overload Clutch.

    Paint code: RAL6024

    For a complete V-plow kit you need V-plow, adaptor, pushframe and a machine specific mounting bracket. Product numbers below:

    Bronco V-Plow 160-E: 75-804800
    Adaptor (Bronco, Kimpex pushframe): 75-804801
    Adaptor (Yamaha Lejab pushframe): 75-808300
    Adaptor (Polaris OEM pushframe): 75-808500
    Adaptor(Can-Am OEM pushframe): 75-804710
    Compatible pushframe, Bronco: 75-804802 or 75-12471-0
    Compatible pushframe, Kimpex: 75-373961 (ATV), 75-873000 (ATV), 75-374981 (UTV)

    See our ATV catalog or website for product numbers on machine specific mounting brackets.
