  •   ATV Grapple crane 450-II with wheel drive winch and boom steering
      ATV Grapple crane 450-II with wheel drive winch and boom steering 1
      ATV Grapple crane 450-II with wheel drive winch and boom steering 2
      ATV Grapple crane 450-II with wheel drive winch and boom steering 3
      ATV Grapple crane 450-II with wheel drive winch and boom steering 4

    ATV Grapple crane 450-II with wheel drive winch and boom steering

    Kodas: 77-12197
    Pasiteirauti apie prekę
    11810.76 €
    Netinka kaina? Siūlyk savo!
    Pristatymo galimybės

    Galutinė pristatymo kaina ir galimybės gali skirtis dėl prekių, įdėtų į krepšelį.

    Kurjeris, per 4 - 20 d. d. 150 €
    Pristatyti nereikia. Prekes pasiimsiu pats., per 2 - 5 d. d., Pramonės g. 18, Pakruojis 0 €

    Bronco Grapple crane trailer 450-II for ATV. A powerful trailer with it´s own hydraulic system, wheel drive, boom steering and hydraulic winch. Pallet shipping cost will be added. Some assembly necessary

    Gamintojas
    No Name

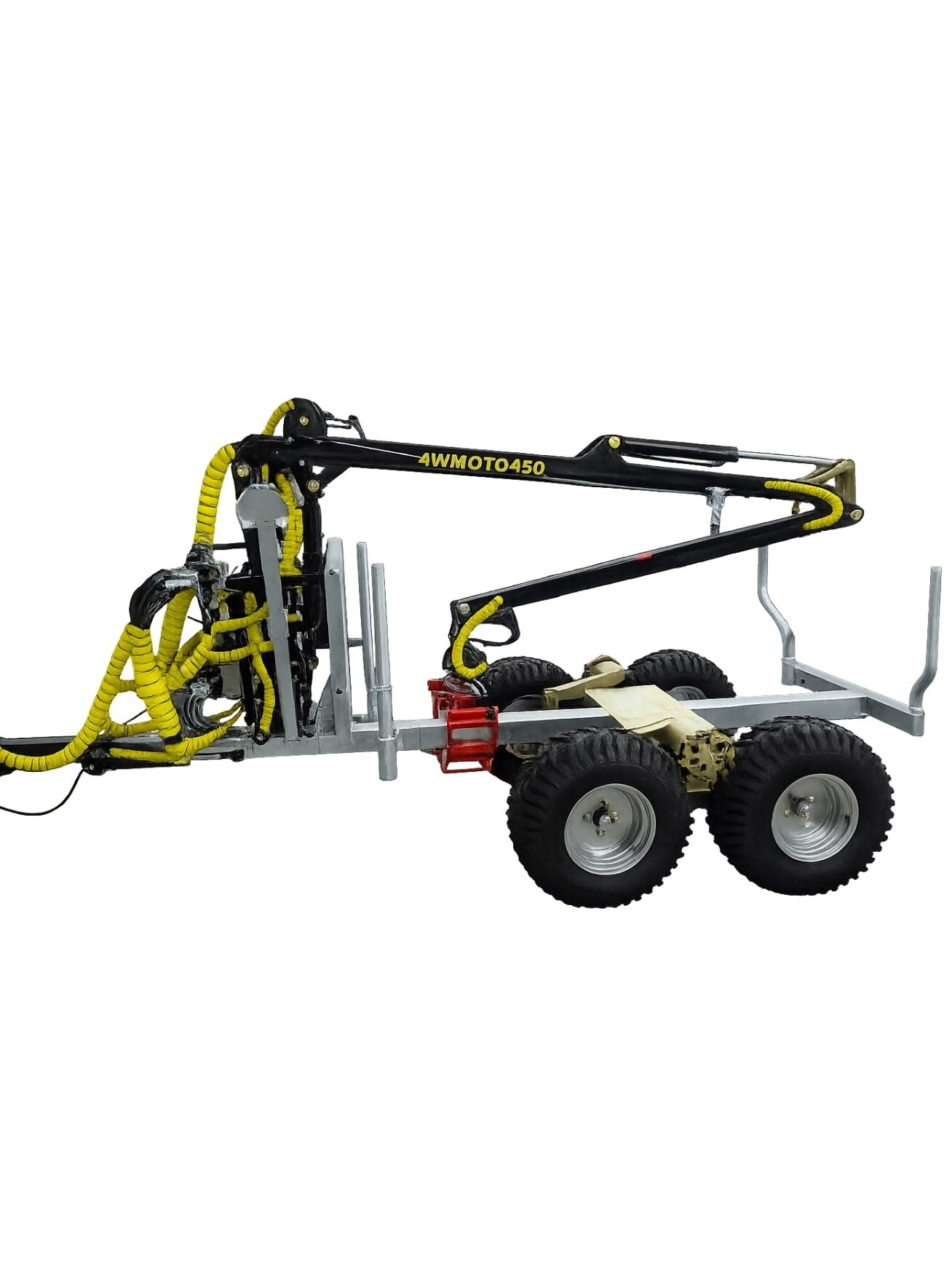

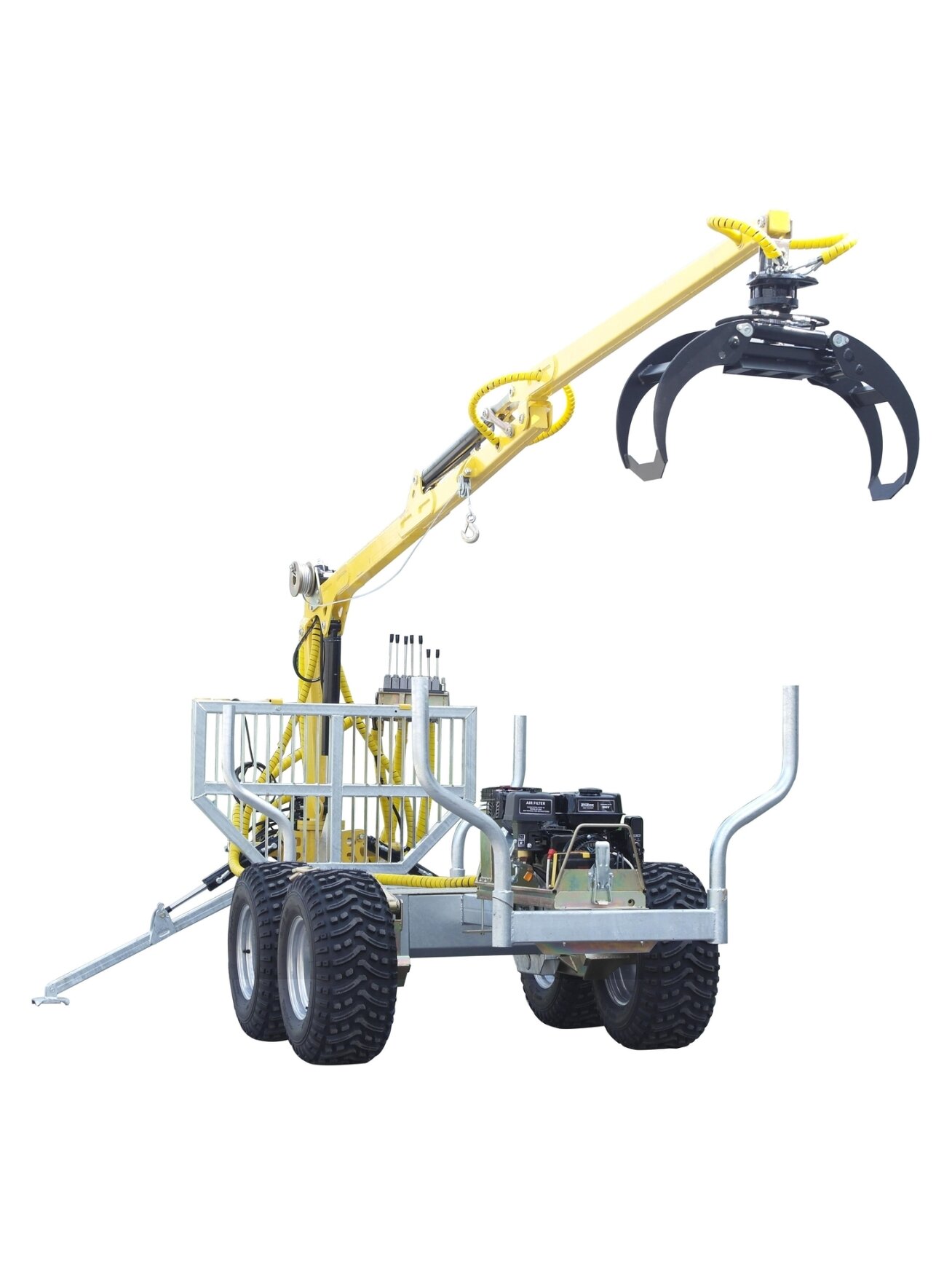

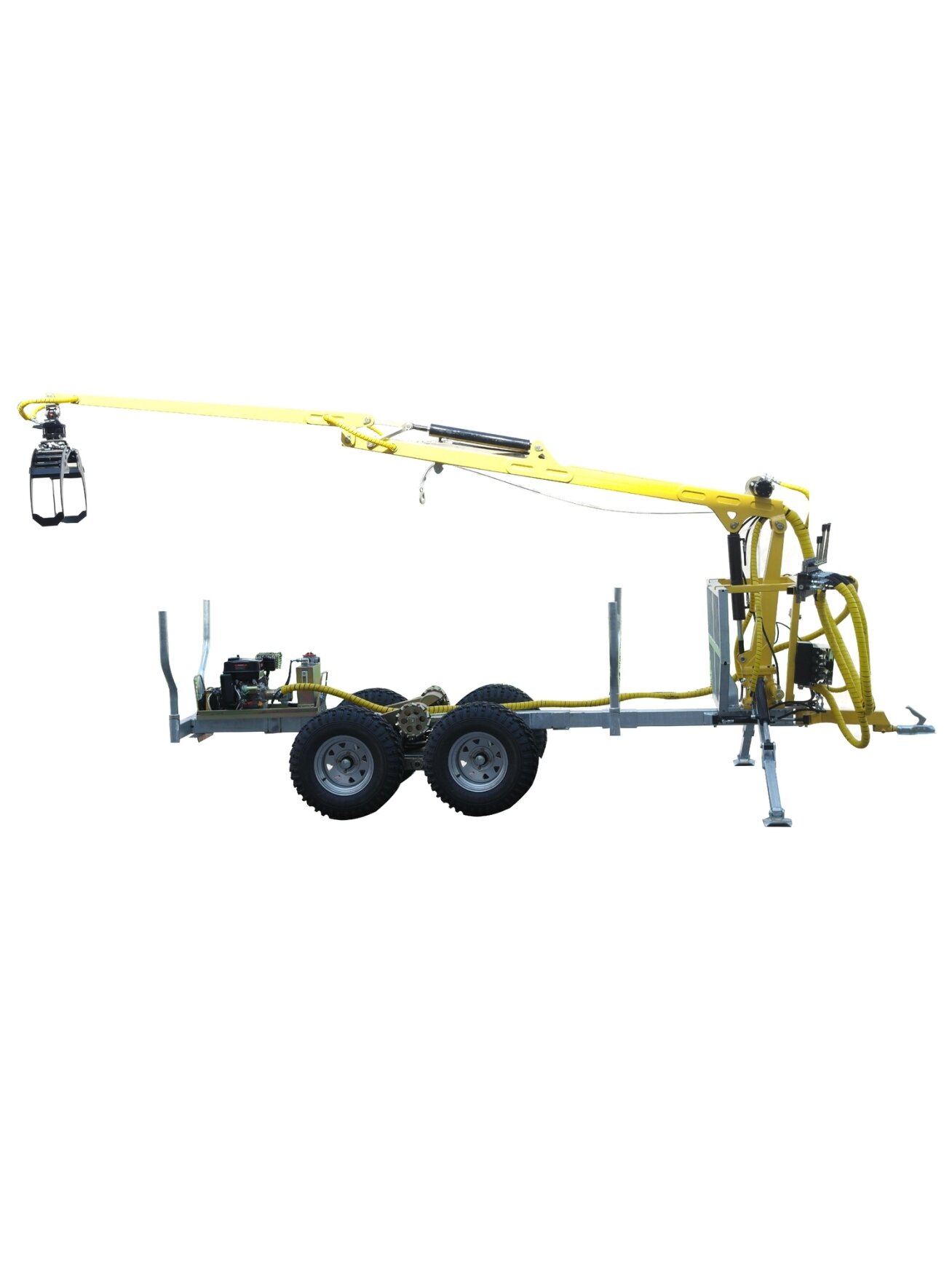

  • Bronco Grapple crane trailer 450-II for ATV.
    A powerful trailer with it´s own hydraulic system, wheel drive and hydraulic winch with 18m cable.

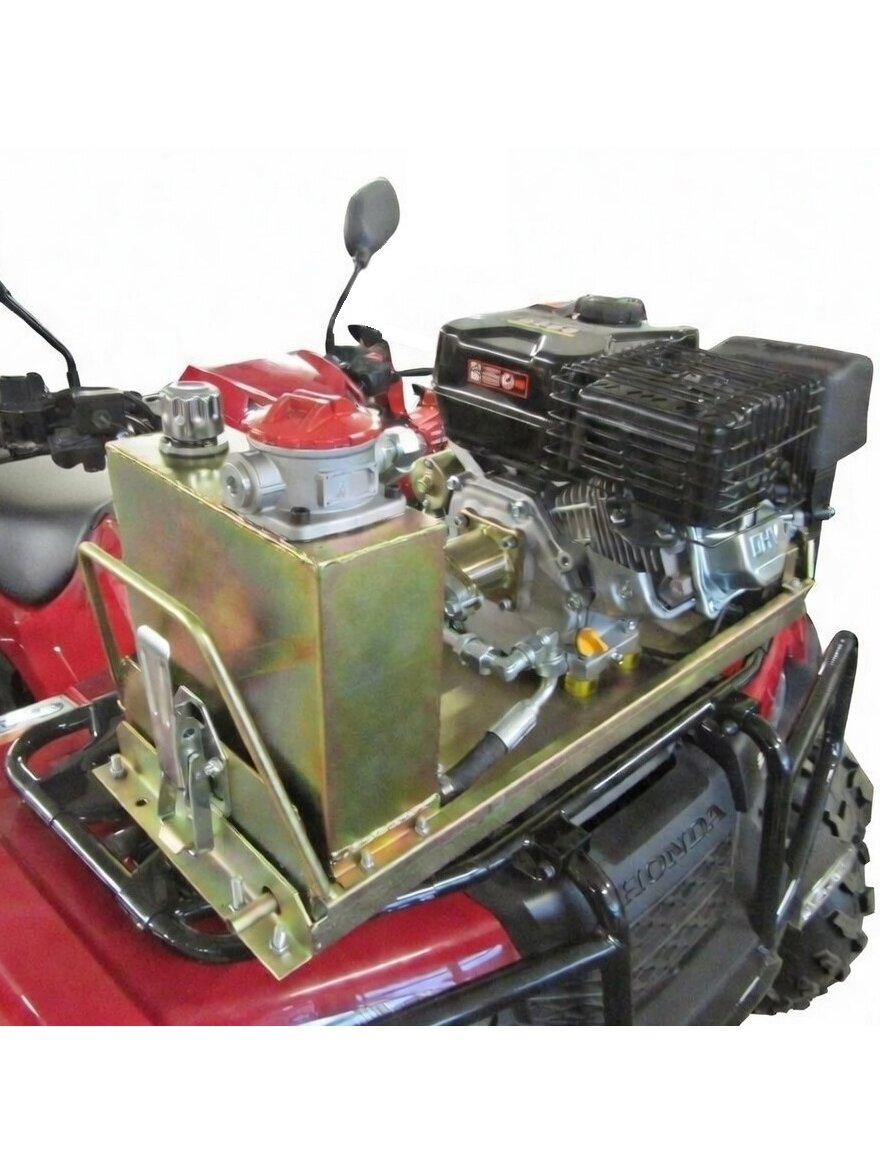

    The 7,5hp Ducar gasoline engine provides the power neccessery to get the job done.
    Generous ground-clearance and a bogie construction that works perfect with the hydraulic wheel drive that you engage when needed. Hydraulic boom steering for maximum maneuverability.
    Hydrualic support legs to avoid tipping. CE-approved.
    4.3m crane reach with a lifting capacity around 200kg. At 2m the capacity is around 300kg. Max. load capacity: 1500kg.
    50mm rotable ball coupling.
    Weight: 630kg
    Dimensions (LxWxH): 4.3m x 1.1m x 1.4m
    Width between extended supporting legs: 1.6m
    Bunk height: 1.3m
    Load bay length: 2.5m
    Max. lifting height: 4.5m
    Crane arm length: 3.5m
    Max. log diameter: 700mm
    Towball pressure: 160kg
    Engine: Ducar 7,5hp
    Pump capacity: 4ML/R
    Work pressure: 16MPa
    Hydraulic tank capacity: 5L
    Suitable batteries:
    Yuasa STD: 14-255
    Motobatt STD: 14-511
    BS Battery STD: 140-300619
    We recommend hydraulic oil 553-83062 (20L) or 553-83061 (5L). Engine oil SAE 30: 553-83052 (1.5L).
    Crane and boom color: Black
